Sandvik Coromant

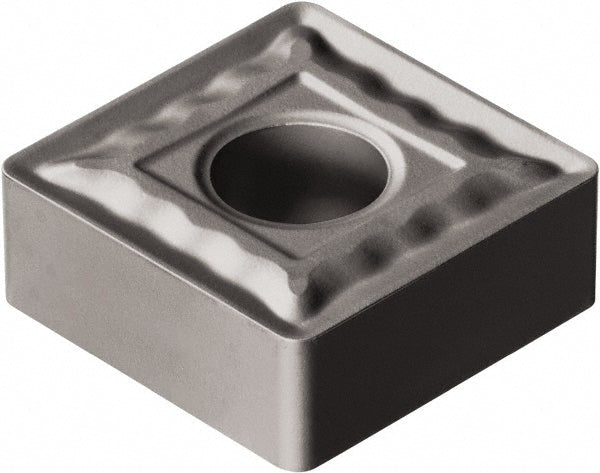

SNMG 15 06 12-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5750070
MFR# 5750070ISO/ANSI# SNMG 15 06 12-QM H13A
$20.78List $26.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5750070 is a SNMG 15 06 12-QM H13A carbide indexable insert, grade H13A.
Specifications
Chip breakerG
Clearance codeN
Corner radius in3/64
Hole diameter0.2500
Included angle90
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 12-QM H13A
Length range0.5000 - 0.6000
Manufacturer gradeH13A
Relief angle0
Tolerance codeM
