Sandvik Coromant

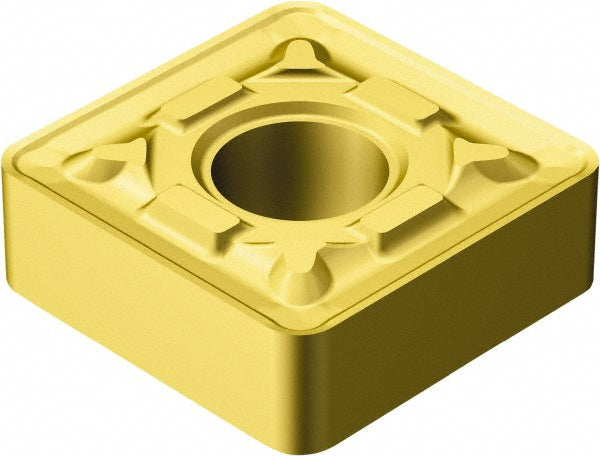

SNMG 12 04 08-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5750141
MFR# 5750141ISO/ANSI# SNMG 12 04 08-MR 2025Series T-Max P
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5750141 is a SNMG 12 04 08-MR 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-MR 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
