Sandvik Coromant

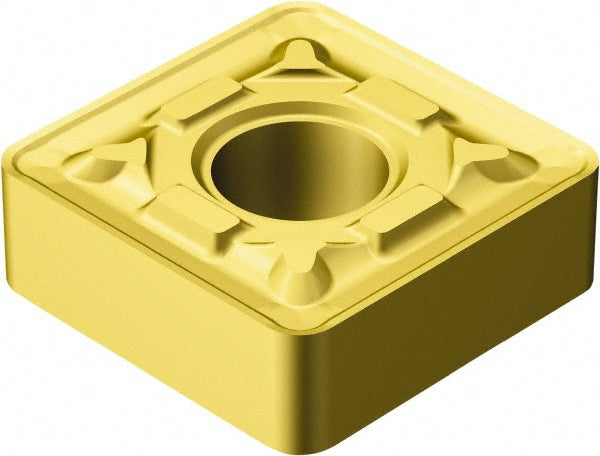

SNMG 12 04 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5750146
MFR# 5750146ISO/ANSI# SNMG 12 04 08-MR 2035
$16.42List $21.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5750146 is a SNMG 12 04 08-MR 2035 carbide indexable insert, grade 2035, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-MR 2035
Length range0.4000 - 0.5000
Manufacturer grade2035
Relief angle0
Tolerance codeM
