Sandvik Coromant

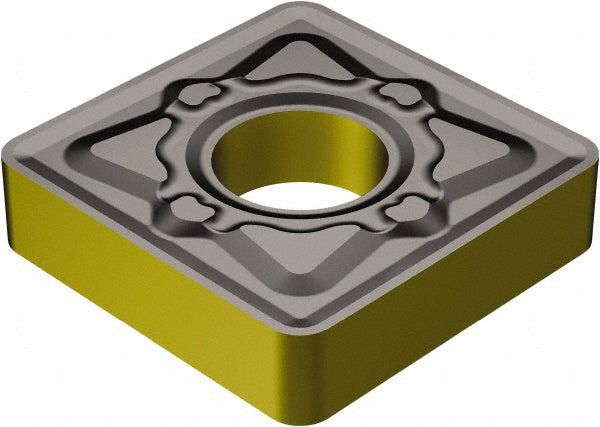

SNMG 12 04 08-KM 3205 Carbide Insert, Grade 3205, TiCN - Sandvik Coromant 5750270
MFR# 5750270ISO/ANSI# SNMG 12 04 08-KM 3205Series T-Max P
$18.05List $23.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade3205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5750270 is a SNMG 12 04 08-KM 3205 carbide indexable insert, grade 3205, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-KM 3205
Length range0.4000 - 0.5000
Manufacturer grade3205
Number of cutting edges8
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
