Sandvik Coromant

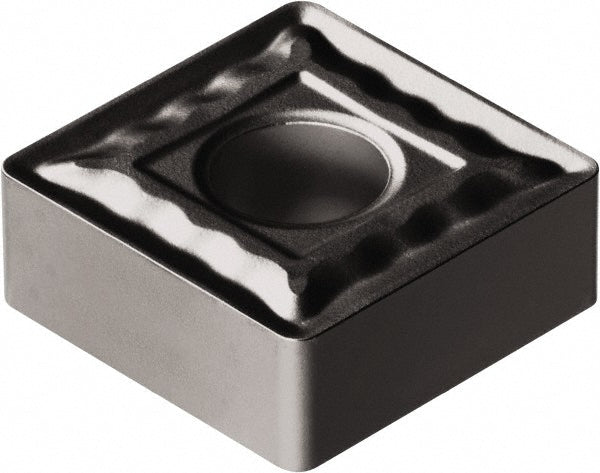

SNMG 12 04 08-QM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5750294
MFR# 5750294ISO/ANSI# SNMG 12 04 08-QM 1105Series T-Max P
$19.58List $25.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5750294 is a SNMG 12 04 08-QM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-QM 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
