Sandvik Coromant

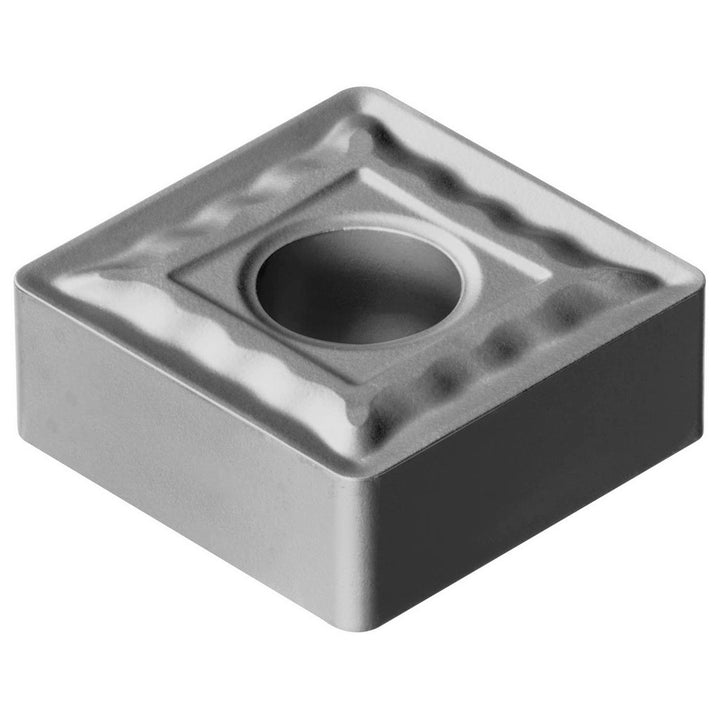

SNMG 12 04 08-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5750365
MFR# 5750365ISO/ANSI# SNMG 12 04 08-QM H13ASeries T-Max P
$14.15List $18.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5750365 is a SNMG 12 04 08-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-QM H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
