Sandvik Coromant

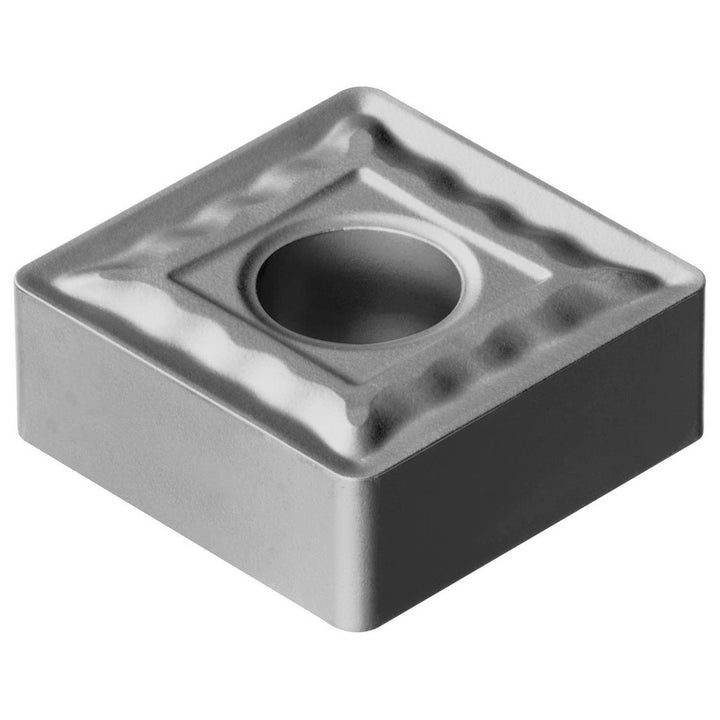

SNMG 19 06 16-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5750639
MFR# 5750639ISO/ANSI# SNMG 19 06 16-QM H13ASeries T-Max P
$28.96List $37.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5750639 is a SNMG 19 06 16-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in1/16
Hole diameter0.3120
Included angle90
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 16-QM H13A
Length range0.6500 - 0.7000
Manufacturer gradeH13A
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
