Sandvik Coromant

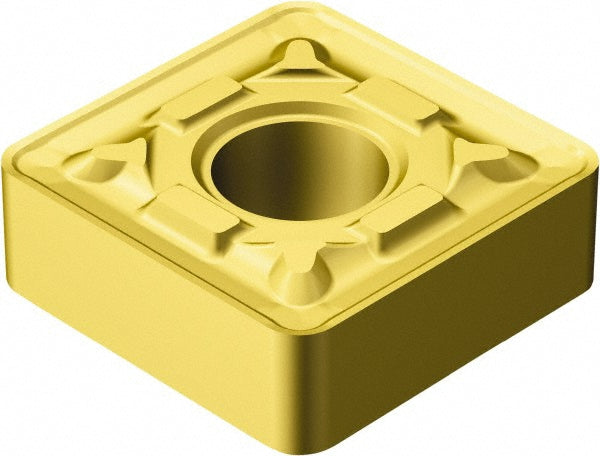

SNMG 19 06 16-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5750786
MFR# 5750786ISO/ANSI# SNMG 19 06 16-MR 2035
$37.19List $47.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5750786 is a SNMG 19 06 16-MR 2035 carbide indexable insert, grade 2035, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in1/16
Hole diameter0.3120
Included angle90
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 16-MR 2035
Length range0.6500 - 0.7000
Manufacturer grade2035
Relief angle0
Tolerance codeM
