SNMG 19 06 16-MR 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5750790

Sandvik Coromant

SNMG 19 06 16-MR 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5750790

MFR# 5750790ISO/ANSI# SNMG 19 06 16-MR 235

$36.22List $46.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeS - Square
Grade235
MaterialCarbide
CoatingTiCN

Description

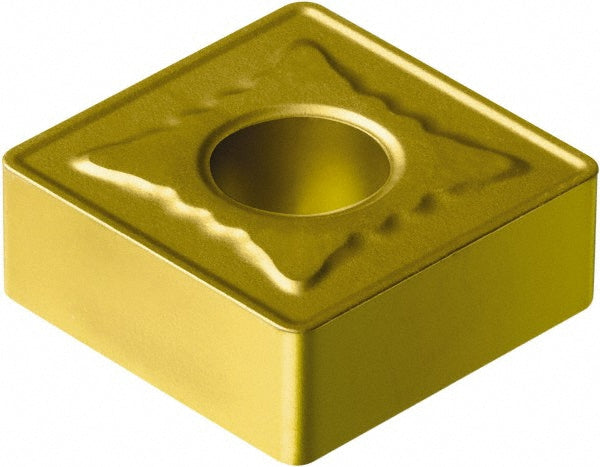

The Sandvik Coromant 5750790 is a SNMG 19 06 16-MR 235 carbide indexable insert, grade 235, TiCN coated.

Specifications

Ansi size code644
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Corner radius in1/16
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3120
Included angle90
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 16-MR 235
Iso size code190616
Length range0.6500 - 0.7000
Manufacturer grade235
Relief angle0
Side clearanceNegative
Tolerance codeM
