Sandvik Coromant

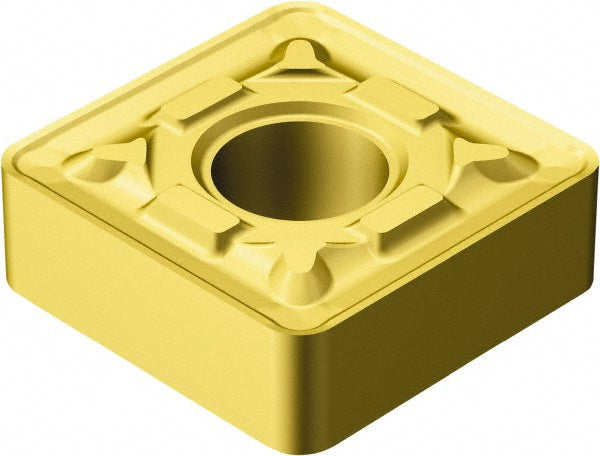

SNMG 19 06 16-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5750821
MFR# 5750821ISO/ANSI# SNMG 19 06 16-MR 2025Series T-Max P
$38.17List $48.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5750821 is a SNMG 19 06 16-MR 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.3120
Included angle90
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 16-MR 2025
Length range0.6500 - 0.7000
Manufacturer grade2025
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
