Sandvik Coromant

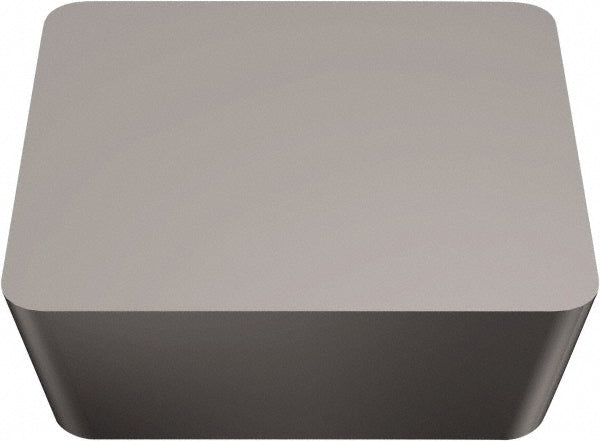

SPGN 120308 H13A Carbide Insert, Grade H13A - Sandvik Coromant 5750995
MFR# 5750995ISO/ANSI# SPGN 120308 H13A
$23.91List $30.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5750995 is a SPGN 120308 H13A carbide indexable insert, grade H13A.
Specifications
Chip breakerN
Clearance codeP
Corner radius in1/32
Included angle90
Inscribed circle in1/2
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code422
Insert styleSPGN
Insert thickness in1/8
Iso codeSPGN 120308 H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Relief angle11
Tolerance codeG
