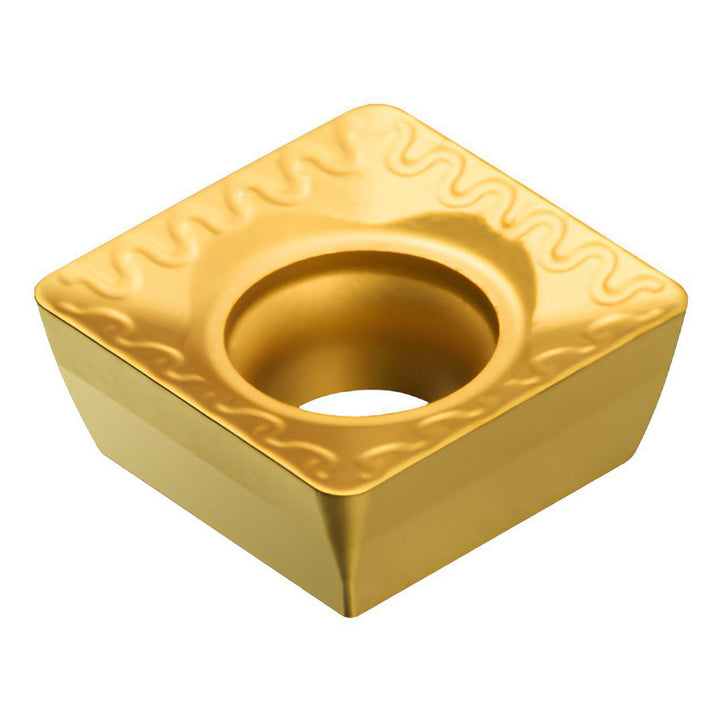

SPMT 09 T3 08-WL 4040 Solid Carbide Insert, Grade 4040, TiCN - Sandvik Coromant 5751066

Sandvik Coromant

SPMT 09 T3 08-WL 4040 Solid Carbide Insert, Grade 4040, TiCN - Sandvik Coromant 5751066

MFR# 5751066ISO/ANSI# SPMT 09 T3 08-WL 4040Cat# SPMT 09 T3 08-WL 4040Series SPMT

$26.65List $34.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
Grade4040
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5751066 is a SPMT 09 T3 08-WL 4040 solid carbide indexable insert, grade 4040, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeSPMT 09 T3 08-WL 4040
Chip breakerWL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleCorner Rounded
Hole diameter0.1575
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSPMT
Iso codeSPMT 09 T3 08-WL 4040
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSPMT 09 T3 08-WL 4040
Manufacturer grade4040
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
