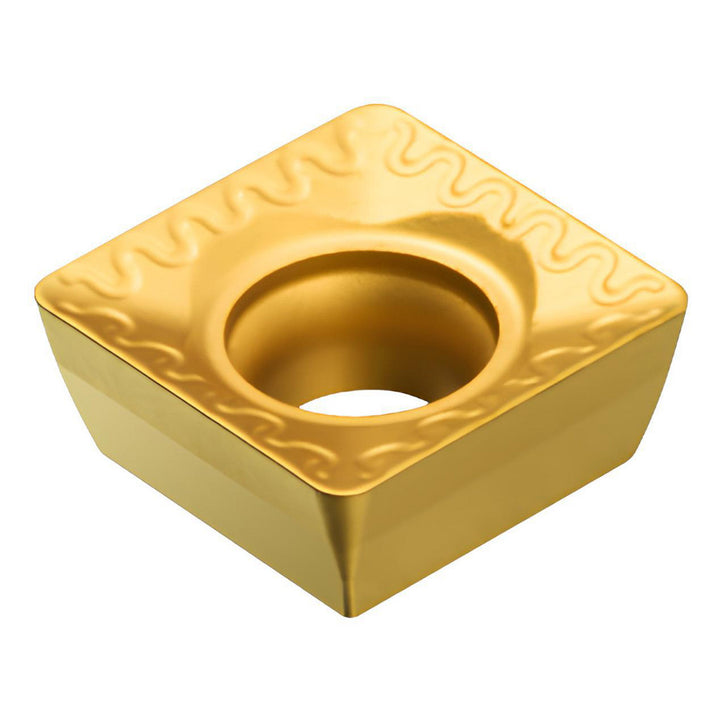

SPMT 12 04 08-WL 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5751080

Sandvik Coromant

SPMT 12 04 08-WL 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5751080

MFR# 5751080ISO/ANSI# SPMT 12 04 08-WL 235Cat# SPMT432-WL 235Series SPMT

$23.20List $29.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5751080 is a SPMT 12 04 08-WL 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeSPMT432-WL 235
Chip breakerWL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR215.64; RA215.64
Cutting edge styleCorner Rounded
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code432
Insert styleSPMT
Iso codeSPMT 12 04 08-WL 235
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMT432-WL 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.4685
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
