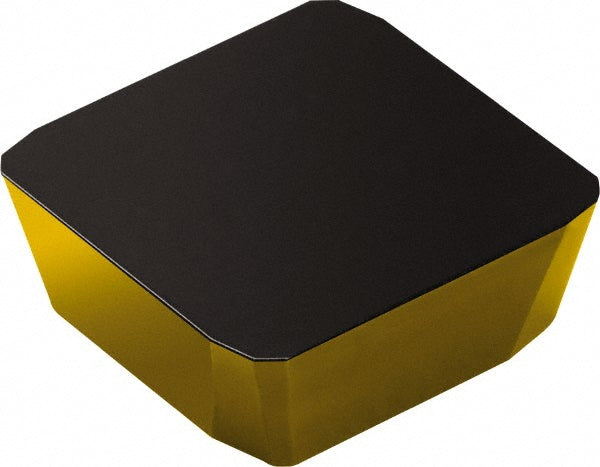

SPKN 12 03 ED R 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5751215

Sandvik Coromant

SPKN 12 03 ED R 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5751215

MFR# 5751215ISO/ANSI# SPKN 12 03 ED R 4230Cat# SMK 42E2 R 4230Series SMK

$25.64List $32.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
Grade4230
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5751215 is a SPKN 12 03 ED R 4230 solid carbide indexable insert, grade 4230, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSMK 42E2 R 4230
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius0.0335
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSMK
Iso codeSPKN 12 03 ED R 4230
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSMK 42E2 R 4230
Manufacturer grade4230
Material applicationSteel; Cast Iron
Maximum depth of cut0.3543
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
