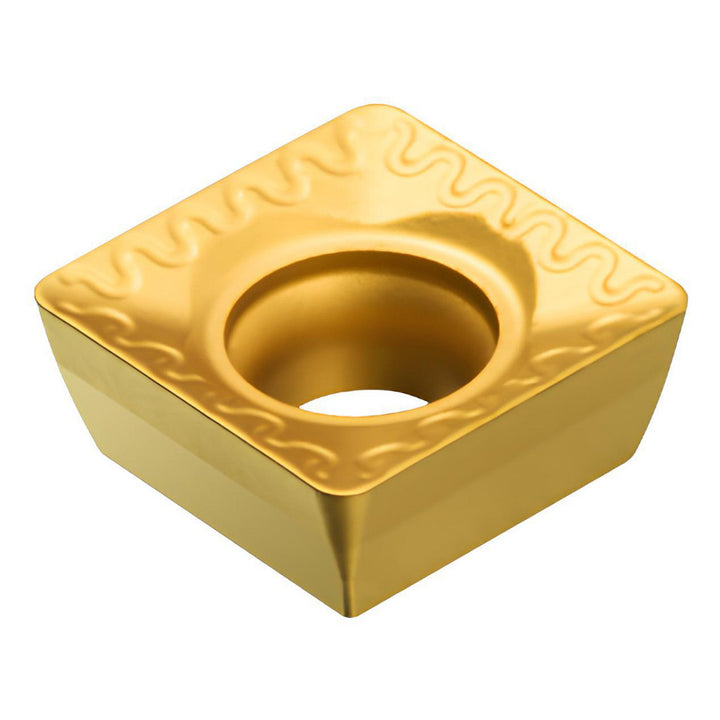

SPMT 09 T3 08-WL 4030 Solid Carbide Insert, Grade 4030, TiCN - Sandvik Coromant 5751320

Sandvik Coromant

SPMT 09 T3 08-WL 4030 Solid Carbide Insert, Grade 4030, TiCN - Sandvik Coromant 5751320

MFR# 5751320ISO/ANSI# SPMT 09 T3 08-WL 4030Cat# SPMT 09 T3 08-WL 4030Series SPMT

$26.65List $34.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
Grade4030
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5751320 is a SPMT 09 T3 08-WL 4030 solid carbide indexable insert, grade 4030, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPMT 09 T3 08-WL 4030
Chip breakerWL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleCorner Rounded
Hole diameter0.1575
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T308
Insert styleSPMT
Iso codeSPMT 09 T3 08-WL 4030
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSPMT 09 T3 08-WL 4030
Manufacturer grade4030
Material applicationSteel; Cast Iron
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
