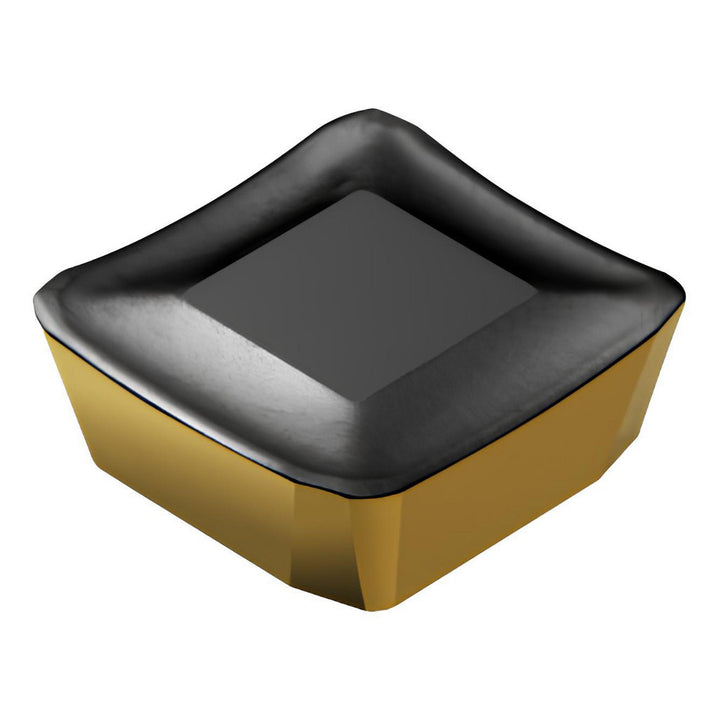

SPKR 15 04 ED R-WH 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5751383

Sandvik Coromant

SPKR 15 04 ED R-WH 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5751383

MFR# 5751383ISO/ANSI# SPKR 15 04 ED R-WH 4230Cat# SMKR 53E2 R-WH 4230Series SMKR

$42.35List $54.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
Grade4230
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5751383 is a SPKR 15 04 ED R-WH 4230 solid carbide indexable insert, grade 4230, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeSMKR 53E2 R-WH 4230
Chip breakerWH
Coating finishTiCN
Coating processCVD
Cutting edge styleHoned
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size5
Insert size code53
Insert styleSMKR
Iso codeSPKR 15 04 ED R-WH 4230
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSMKR 53E2 R-WH 4230
Manufacturer grade4230
Material applicationSteel; Cast Iron
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle8
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in5/8
