Sandvik Coromant

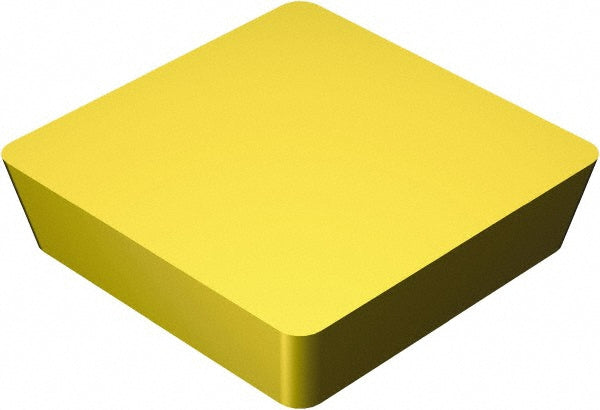

SPUN 19 04 12 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5751432
MFR# 5751432ISO/ANSI# SPUN 19 04 12 2025
$38.10List $48.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5751432 is a SPUN 19 04 12 2025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerN
Clearance codeP
Coating finishTiCN
Corner radius in3/64
Included angle90
Inscribed circle in3/4
Insert holding methodClamp
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code633
Insert styleSPUN
Insert thickness in3/16
Iso codeSPUN 19 04 12 2025
Length range0.7000 - 10.0000
Manufacturer grade2025
Relief angle11
Tolerance codeU
