Sandvik Coromant

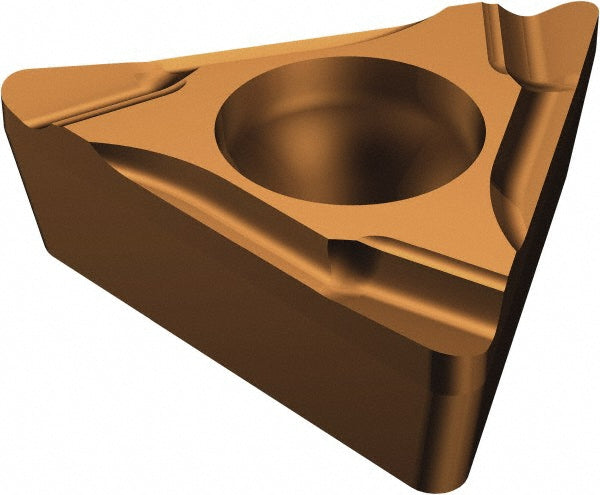

TCGT 06 T1 02L-K 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5751716
MFR# 5751716ISO/ANSI# TCGT 06 T1 02L-K 1125Series CoroTurn 107
$25.56List $32.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5751716 is a TCGT 06 T1 02L-K 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
ChipbreakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.20
Insert styleTCGT
Iso codeTCGT 06 T1 02L-K 1125
Length0.2606
Manufacturers catalog number5751716
Manufacturer grade1125
Maximum depth of cut0.2528
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
