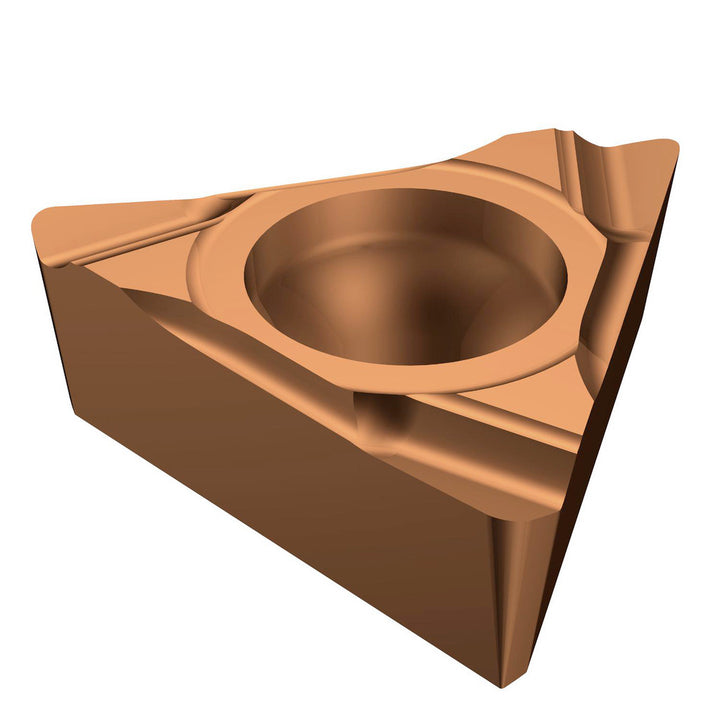

TCGX 11 02 04L-WK 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5751729

Sandvik Coromant

TCGX 11 02 04L-WK 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5751729

MFR# 5751729ISO/ANSI# TCGX110204Series CoroTurn 107

$27.75List $35.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5751729 is a TCGX 11 02 04L-WK 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeTCGX21.51
Ansi size code21.51
Chip breakerWK
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTCGX
Insert thickness in3/32
Iso codeTCGX 11 02 04L-WK 1125
Iso insert codeTCGX110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeG
Wiper edgeYes
