Sandvik Coromant

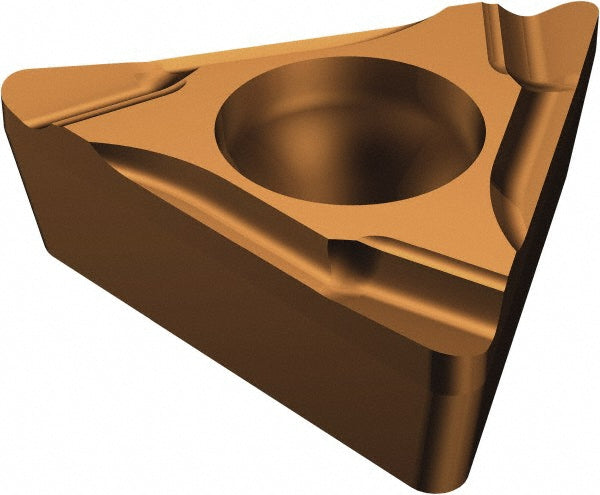

TCGT 06 T1 04L-K 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5751733
MFR# 5751733ISO/ANSI# TCGT 06 T1 04L-K 1115Series CoroTurn 107
$25.56List $32.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5751733 is a TCGT 06 T1 04L-K 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerK
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.21
Insert styleTCGT
Iso codeTCGT 06 T1 04L-K 1115
Length0.2606
Manufacturers catalog number5751733
Manufacturer grade1115
Maximum depth of cut0.2449
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
