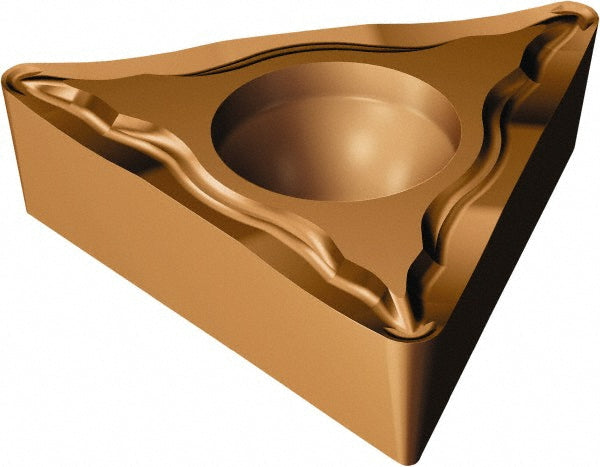

TCMT 09 02 04-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5751760

Sandvik Coromant

TCMT 09 02 04-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5751760

MFR# 5751760ISO/ANSI# TCMT090204Series CoroTurn 107

$13.68List $17.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC7/32
ShapeT - Triangle
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5751760 is a TCMT 09 02 04-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeTCMT1.81.51
Ansi size code1.81.51
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3689
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-UM 1125
Iso insert codeTCMT090204
Iso size code090204
Length range0.3000 - 0.4000
Manufacturers catalog number5751760
Manufacturer grade1125
Maximum depth of cut0.3532
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
