Sandvik Coromant

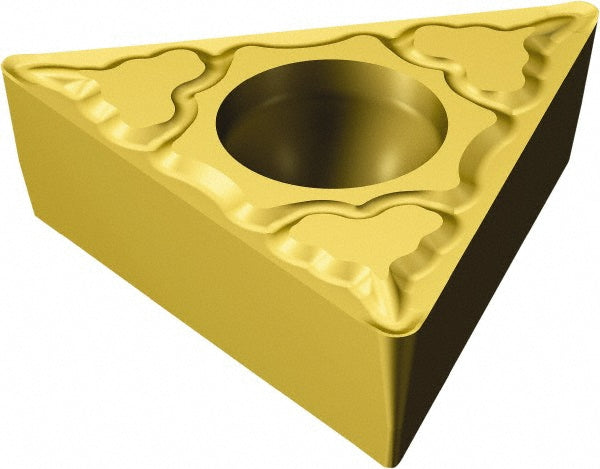

TCMT 09 02 04-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5751902
MFR# 5751902ISO/ANSI# TCMT 09 02 04-MM 2025Series CoroTurn 107
$13.18List $16.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5751902 is a TCMT 09 02 04-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-MM 2025
Length range0.3000 - 0.4000
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
