Sandvik Coromant

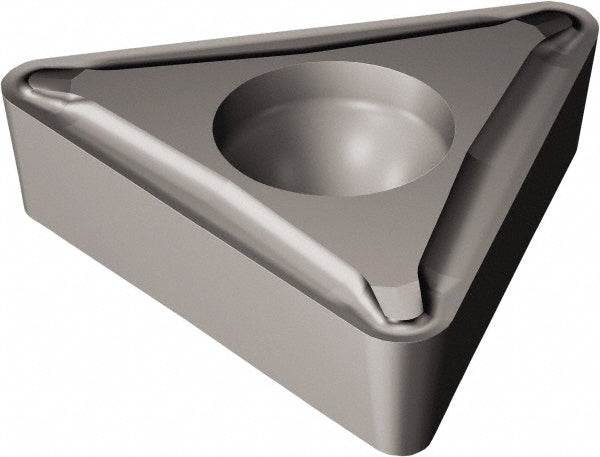

TCMT 11 02 02-UF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5751910
MFR# 5751910ISO/ANSI# TCMT 11 02 02-UF 5015Series CoroTurn 107
$16.17List $20.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5751910 is a TCMT 11 02 02-UF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating processUncoated
Corner radius0.0079
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4150
Insert materialCarbide
Insert shapeTriangle
Insert size code21.5
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 02-UF 5015
Length range0.4000 - 0.5000
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
