Sandvik Coromant

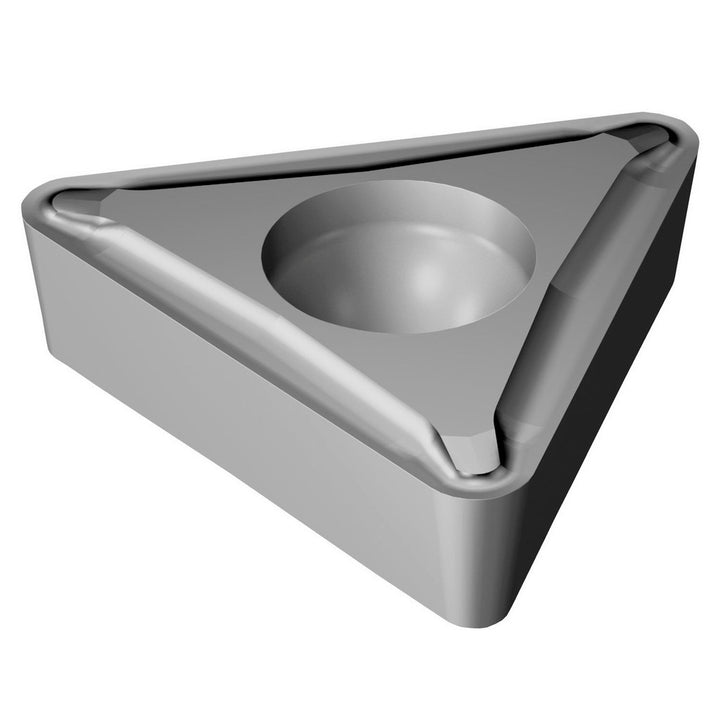

TCMT 11 02 02-UF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5751930
MFR# 5751930ISO/ANSI# TCMT 11 02 02-UF H13ASeries CoroTurn 107
$12.72List $16.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5751930 is a TCMT 11 02 02-UF H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4150
Insert materialCarbide
Insert shapeTriangle
Insert size code21.50
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 02-UF H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
