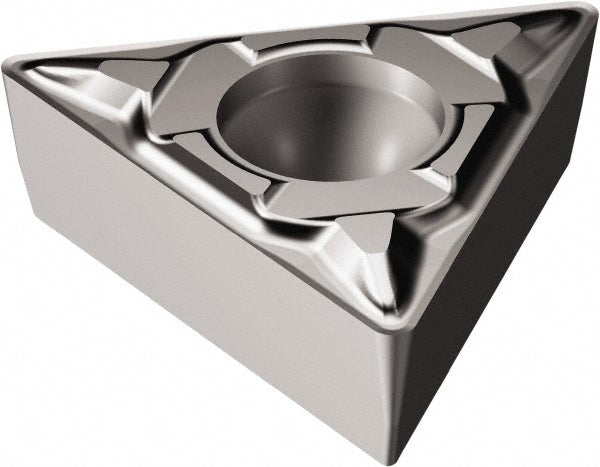

TCMT 09 02 02-MF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5752020

Sandvik Coromant

TCMT 09 02 02-MF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5752020

MFR# 5752020ISO/ANSI# TCMT090202Series CoroTurn 107

$15.20List $19.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC7/32
ShapeT - Triangle
Grade1105
MaterialCarbide
CoatingTiAlN2

Description

The Sandvik Coromant 5752020 is a TCMT 09 02 02-MF 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.

Specifications

Ansi insert codeTCMT1.81.50
Ansi size code1.81.50
Chip breakerMF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius0.0079
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3689
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1.81.50
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 02-MF 1105
Iso insert codeTCMT090202
Iso size code090202
Length range0.3000 - 0.4000
Manufacturers catalog number5752020
Manufacturer grade1105
Maximum depth of cut0.3610
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
