Sandvik Coromant

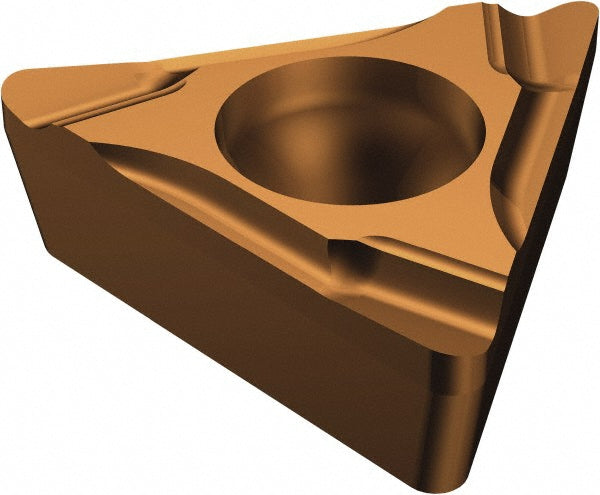

TCGT 09 02 04L-K 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752081
MFR# 5752081ISO/ANSI# TCGT 09 02 04L-K 1125Series CoroTurn 107
$25.56List $32.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752081 is a TCGT 09 02 04L-K 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerK
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handLeft Hand
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT 09 02 04L-K 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeG
Wiper edgeNo
