Sandvik Coromant

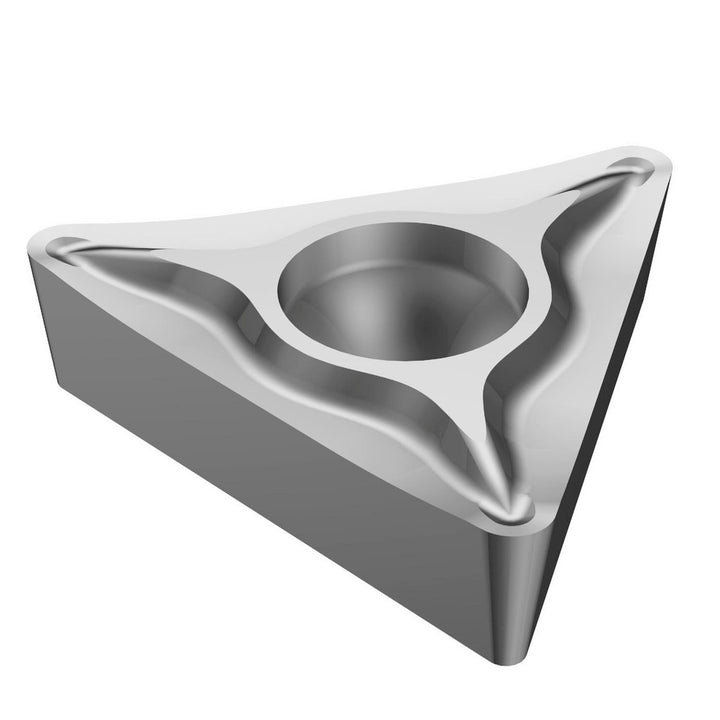

TCGT 16 T3 04-UM H10A Carbide Insert, Grade H10A - Sandvik Coromant 5752083
MFR# 5752083ISO/ANSI# TCGT 16 T3 04-UM H10ASeries CoroTurn 107
$27.71List $35.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeH10A
MaterialCarbide
Description
The Sandvik Coromant 5752083 is a TCGT 16 T3 04-UM H10A carbide indexable insert, grade H10A. Suited for superalloy, titanium.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCGT
Insert thickness in5/32
Iso codeTCGT 16 T3 04-UM H10A
Length range0.6000 - 0.6500
Manufacturer gradeH10A
Number of cutting edges3
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeG
Wiper edgeNo
