Sandvik Coromant

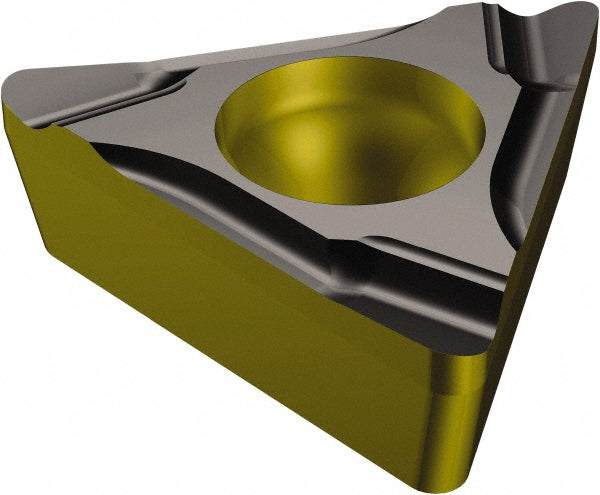

TCGT090202LK1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5752100
MFR# 5752100ISO/ANSI# TCGT090202Series CoroTurn 107
$23.07List $29.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeT - Triangle
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752100 is a TCGT090202LK1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
Ansi insert codeTCGT1.81.50
Ansi size code1.81.50
Chip breakerK
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius0.0079
Grade characteristicsSteel (P) - High Wear-Resistance
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handLeft Hand
Insert holding methodScrew
Insert length0.3689
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1.81.50
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT090202LK1515
Iso insert codeTCGT090202
Iso size code090202
Length range0.3000 - 0.4000
Manufacturers catalog number5752100
Manufacturer grade1515
Maximum depth of cut0.3610
Relief angle7
Side clearancePositive
Tolerance codeG
