Sandvik Coromant

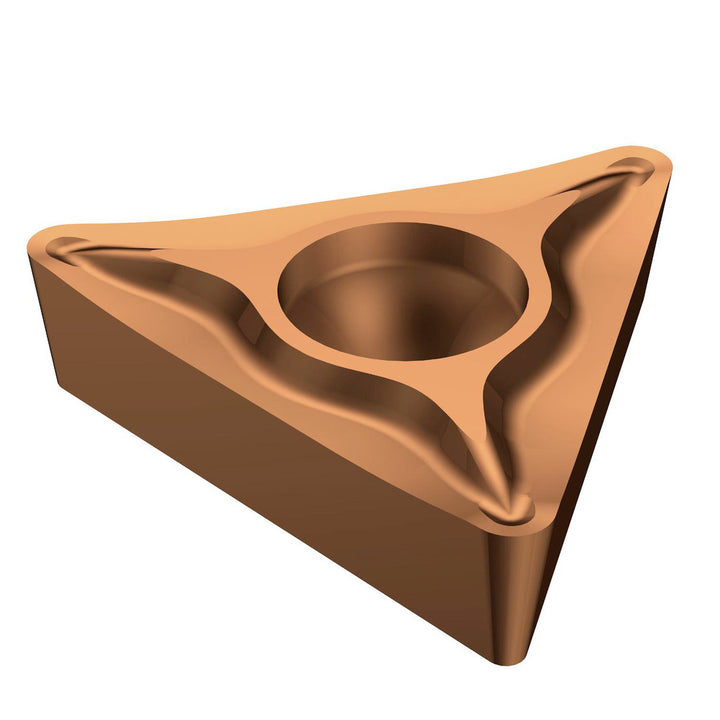

TCGT 11 02 04-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752291
MFR# 5752291ISO/ANSI# TCGT 11 02 04-UM 1125Series CoroTurn 107
$26.52List $34.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752291 is a TCGT 11 02 04-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT 11 02 04-UM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeG
Wiper edgeNo
