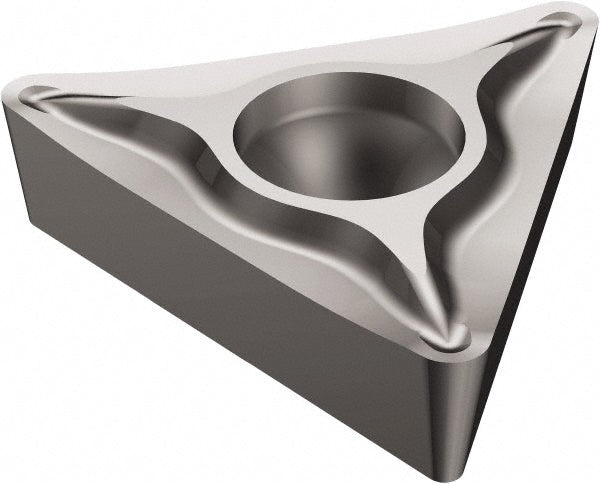

TCGT 11 02 04-UM 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5752306
MFR# 5752306ISO/ANSI# TCGT 11 02 04-UM 5015Series CoroTurn 107
$24.14List $30.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5752306 is a TCGT 11 02 04-UM 5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4228
Insert materialCermet
Insert shapeTriangle
Insert size code21.51
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT 11 02 04-UM 5015
Length range0.4000 - 0.5000
Manufacturers catalog number5752306
Manufacturer grade5015
Maximum depth of cut0.4071
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeG
Wiper edgeNo
