Sandvik Coromant

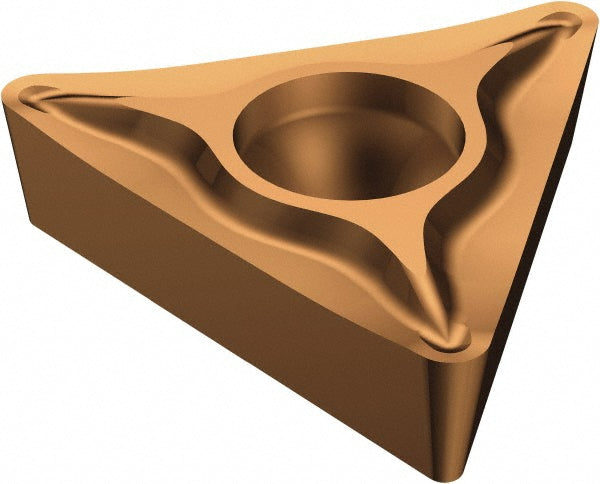

TCGT 11 03 08-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5752312
MFR# 5752312ISO/ANSI# TCGT 11 03 08-UM 1115Series CoroTurn 107
$24.55List $31.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752312 is a TCGT 11 03 08-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3913
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTCGT
Insert thickness in1/8
Iso codeTCGT 11 03 08-UM 1115
Length range0.3000 - 0.4000
Manufacturer grade1115
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
