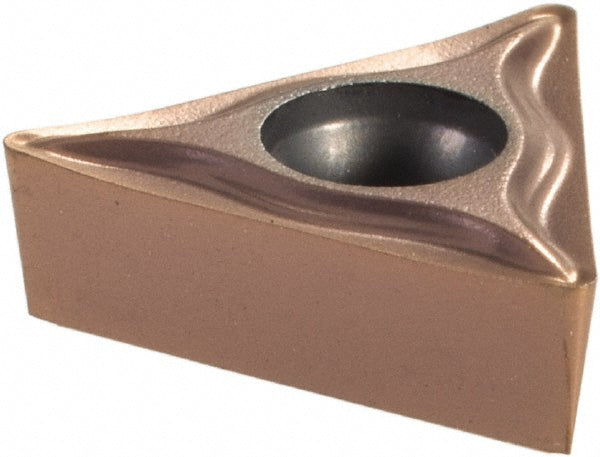

TCGT 11 03 04-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5752332

Sandvik Coromant

TCGT 11 03 04-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5752332

MFR# 5752332ISO/ANSI# TCGT110304Series CoroTurn 107

$24.55List $31.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
Grade1115
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5752332 is a TCGT 11 03 04-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeTCGT221
Ansi size code221
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTCGT
Insert thickness in1/8
Iso codeTCGT 11 03 04-UM 1115
Iso insert codeTCGT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeG
Wiper edgeNo
