Sandvik Coromant

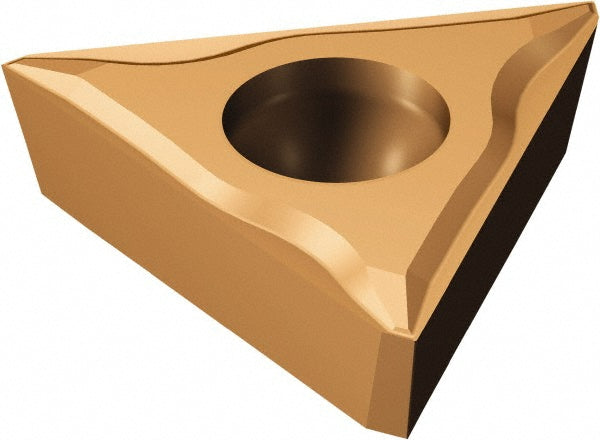

TCEX 05 01 01L-F 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752349
MFR# 5752349ISO/ANSI# TCEX 05 01 01L-F 1125Series CoroTurn 107
$33.76List $43.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752349 is a TCEX 05 01 01L-F 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
ChipbreakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.0886
Included angle60
Inscribed circle0.1324
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code0501
Insert styleTCEX
Iso codeTCEX 05 01 01L-F 1125
Length0.2154
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
