Sandvik Coromant

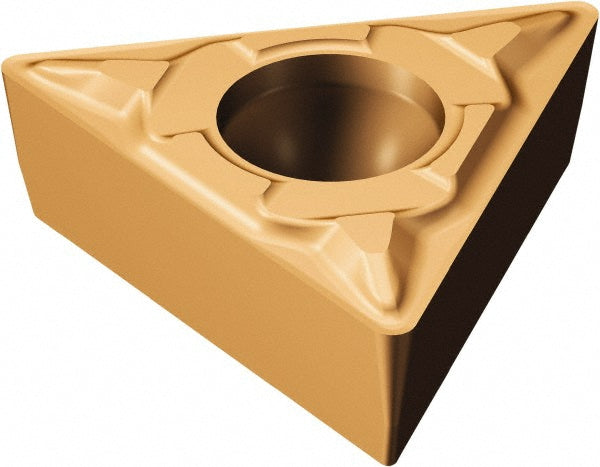

TCMT 11 03 02-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5752434
MFR# 5752434ISO/ANSI# TCMT 11 03 02-MF 1115Series CoroTurn 107
$17.77List $22.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752434 is a TCMT 11 03 02-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4150
Insert materialCarbide
Insert shapeTriangle
Insert size code220
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 02-MF 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
