Sandvik Coromant

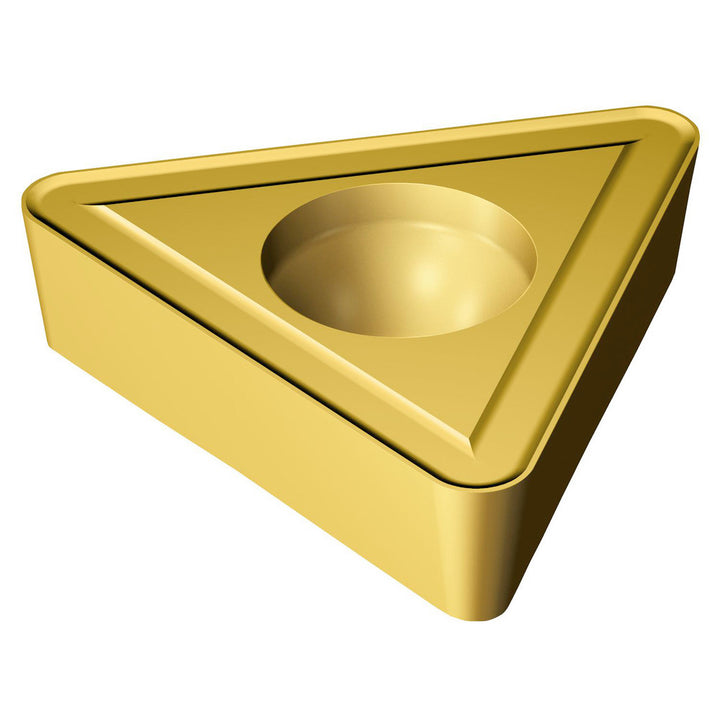

TCMT 11 02 04-UR 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5752453
MFR# 5752453ISO/ANSI# TCMT 11 02 04-UR 235Series CoroTurn 107
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752453 is a TCMT 11 02 04-UR 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerUR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 04-UR 235
Length range0.4000 - 0.5000
Manufacturer grade235
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
