Sandvik Coromant
TCMT 11 03 04-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5752482
MFR# 5752482ISO/ANSI# TCMT 11 03 04-MM 2025Series CoroTurn 107
$15.71List $20.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description

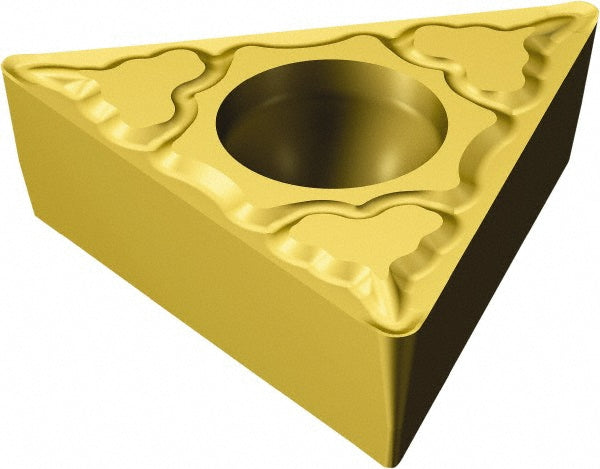

The Sandvik Coromant 5752482 is a TCMT 11 03 04-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 04-MM 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
