Sandvik Coromant

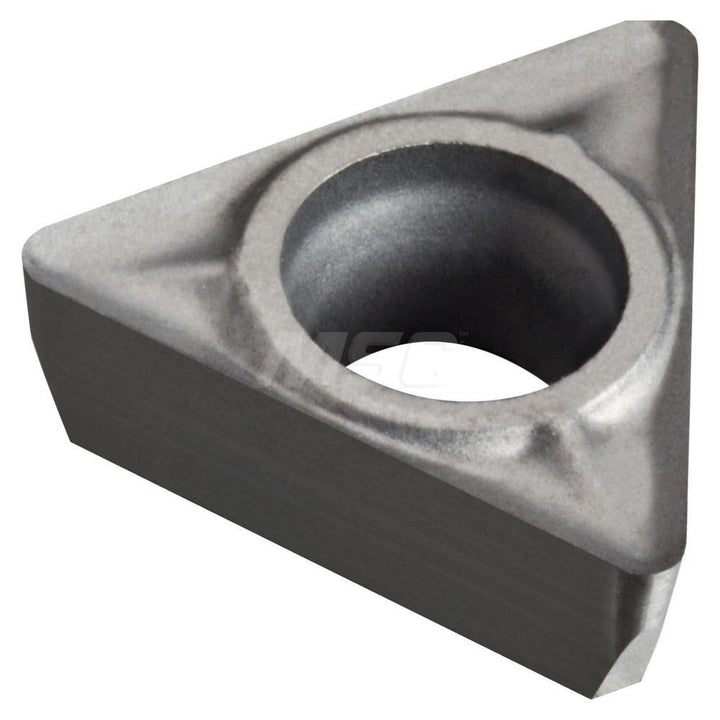

TCGX 16 T3 08-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5752501
MFR# 5752501ISO/ANSI# TCGX 16 T3 08-AL H10Series CoroTurn 107
$24.84List $31.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5752501 is a TCGX 16 T3 08-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCGX
Insert thickness in5/32
Iso codeTCGX 16 T3 08-AL H10
Length range0.6000 - 0.6500
Manufacturer gradeH10
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
