Sandvik Coromant

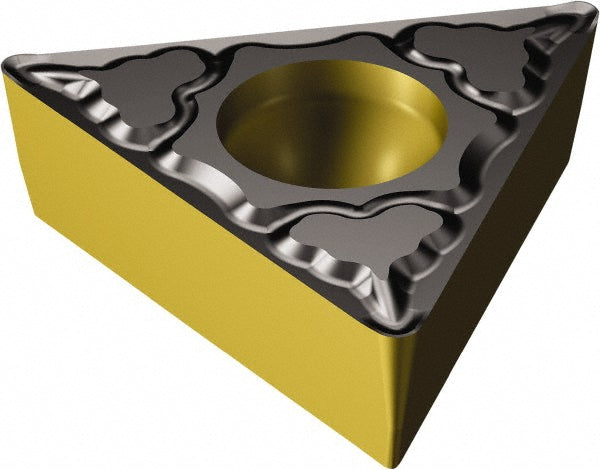

TCMT 11 03 04-MM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5752518
MFR# 5752518ISO/ANSI# TCMT 11 03 04-MM 1105Series CoroTurn 107
$16.42List $21.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752518 is a TCMT 11 03 04-MM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 04-MM 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
