Sandvik Coromant

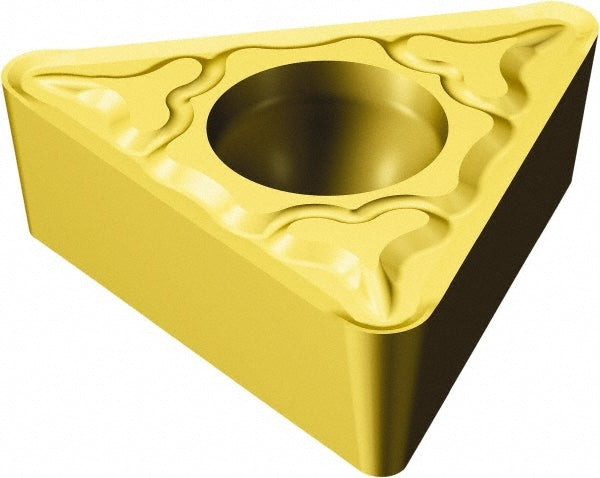

TCMT 16 T3 08-KM 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5752566
MFR# 5752566ISO/ANSI# TCMT 16 T3 08-KM 3005
$18.57List $23.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752566 is a TCMT 16 T3 08-KM 3005 carbide indexable insert, grade 3005, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-KM 3005
Length range0.6000 - 0.6500
Manufacturer grade3005
Relief angle7
Tolerance codeM
