Sandvik Coromant

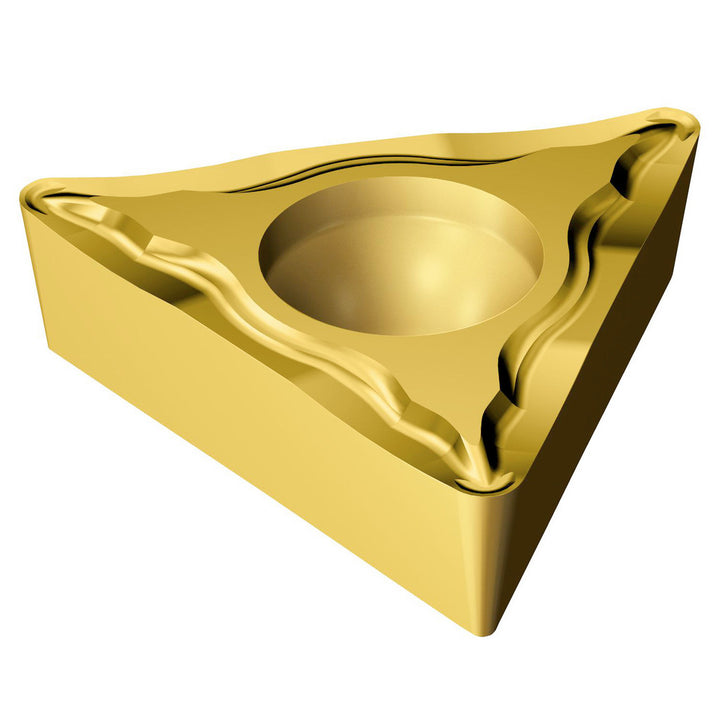

TCMT 16 T3 04-UM 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5752580
MFR# 5752580ISO/ANSI# TCMT 16 T3 04-UM 235Series CoroTurn 107
$17.19List $22.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752580 is a TCMT 16 T3 04-UM 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 04-UM 235
Length range0.6000 - 0.6500
Manufacturer grade235
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
