Sandvik Coromant

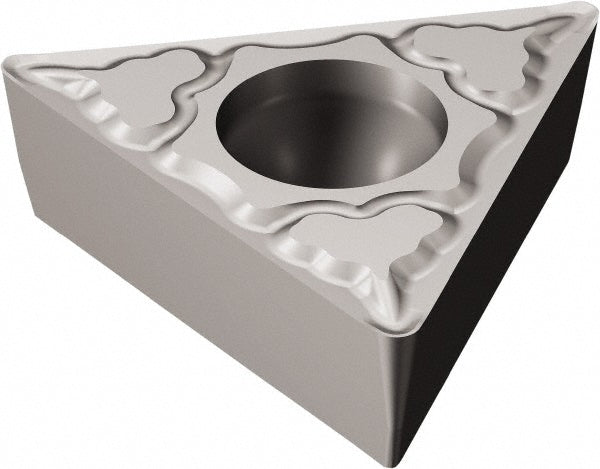

TCMT 16 T3 08-PM 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5752604
MFR# 5752604ISO/ANSI# TCMT 16 T3 08-PM 5015Series CoroTurn 107
$18.57List $23.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5752604 is a TCMT 16 T3 08-PM 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-PM 5015
Length range0.6000 - 0.6500
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
