Sandvik Coromant

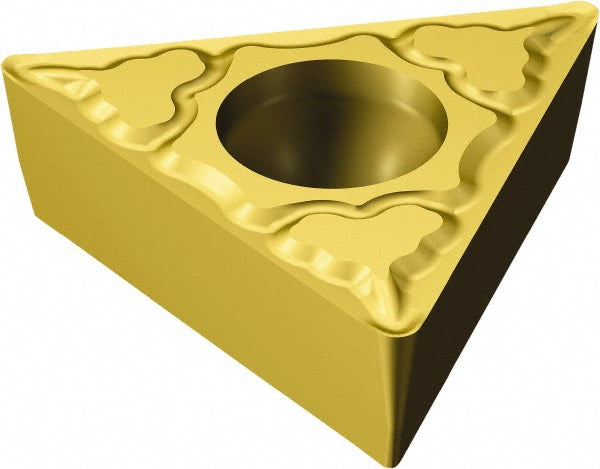

TCMT 16 T3 08-PM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5752637
MFR# 5752637ISO/ANSI# TCMT 16 T3 08-PM 1525Series CoroTurn 107
$18.57List $23.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752637 is a TCMT 16 T3 08-PM 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-PM 1525
Length range0.6000 - 0.6500
Manufacturer grade1525
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
