Sandvik Coromant

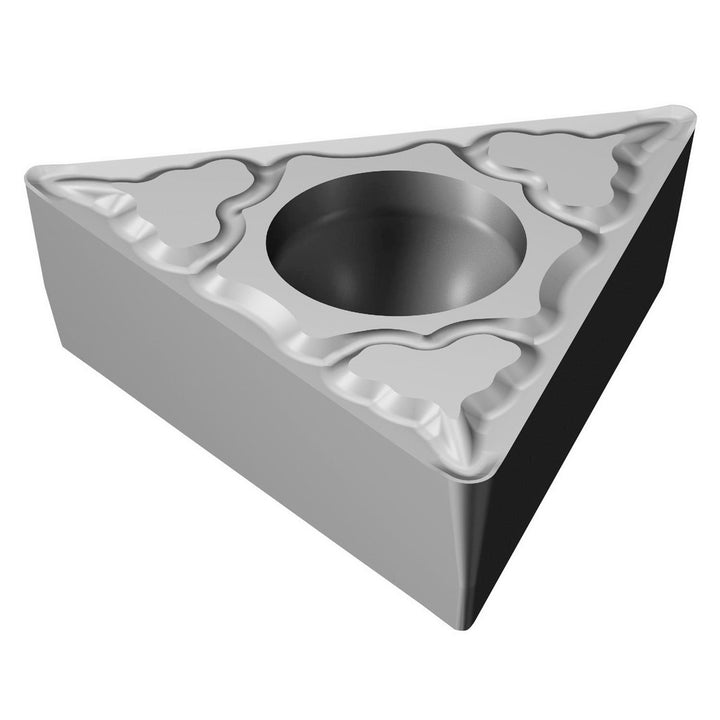

TCMT 16 T3 12-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5752695
MFR# 5752695ISO/ANSI# TCMT 16 T3 12-KM H13ASeries CoroTurn 107
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5752695 is a TCMT 16 T3 12-KM H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Corner radius in3/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6023
Insert materialCarbide
Insert shapeTriangle
Insert size code32.53
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 12-KM H13A
Length range0.6000 - 0.6500
Manufacturer gradeH13A
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
