Sandvik Coromant

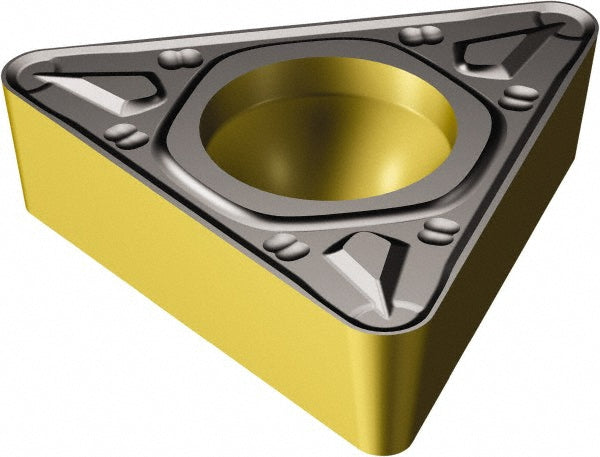

TCMT 16 T3 12-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5752714
MFR# 5752714ISO/ANSI# TCMT 16 T3 12-KR 3210Series CoroTurn 107
$18.75List $24.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752714 is a TCMT 16 T3 12-KR 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6023
Insert materialCarbide
Insert shapeTriangle
Insert size code32.53
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 12-KR 3210
Length range0.6000 - 0.6500
Manufacturer grade3210
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
