Sandvik Coromant

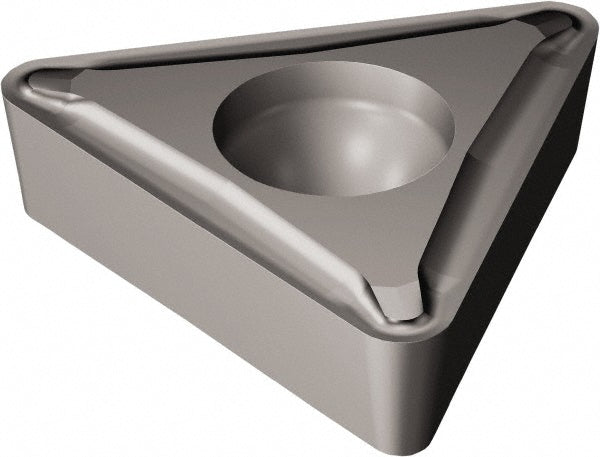

TCMT 09 02 08-UF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5752744
MFR# 5752744ISO/ANSI# TCMT 09 02 08-UF 5015
$12.46List $15.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5752744 is a TCMT 09 02 08-UF 5015 carbide indexable insert, grade 5015.
Specifications
Chip breakerT
Clearance codeC
Corner radius in1/32
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert holding methodScrew
Insert length0.3374
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.52
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 08-UF 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Relief angle7
Tolerance codeM
