Sandvik Coromant

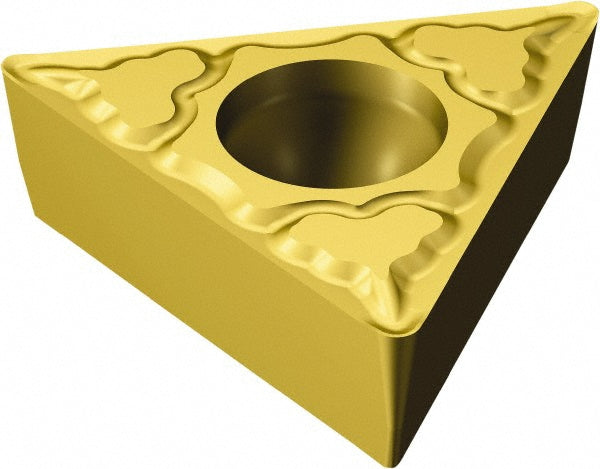

TCMT 16 T3 04-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5752750
MFR# 5752750ISO/ANSI# TCMT 16 T3 04-MM 2025Series CoroTurn 107
$19.58List $25.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752750 is a TCMT 16 T3 04-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 04-MM 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
