Sandvik Coromant

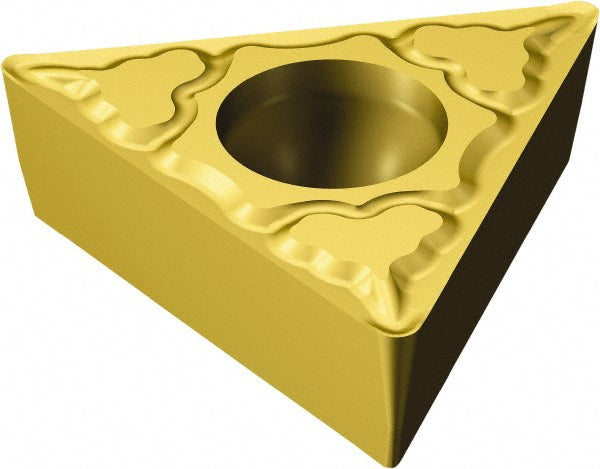

TCMT 16 T3 08-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5752790
MFR# 5752790ISO/ANSI# TCMT 16 T3 08-MM 2035Series CoroTurn 107
$17.70List $22.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752790 is a TCMT 16 T3 08-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-MM 2035
Length range0.6000 - 0.6500
Manufacturer grade2035
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
