Sandvik Coromant

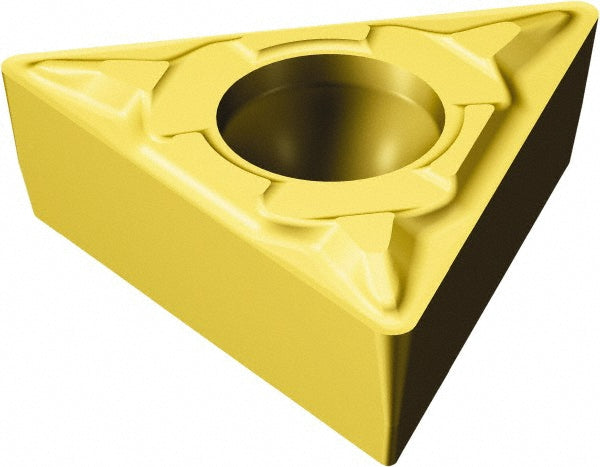

TCMT 06 T1 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5752816
MFR# 5752816ISO/ANSI# TCMT 06 T1 04-MF 2015Series CoroTurn 107
$13.18List $16.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752816 is a TCMT 06 T1 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
ChipbreakerMF
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.21
Insert styleTCMT
Iso codeTCMT 06 T1 04-MF 2015
Length0.2449
Manufacturer grade2015
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
