Sandvik Coromant

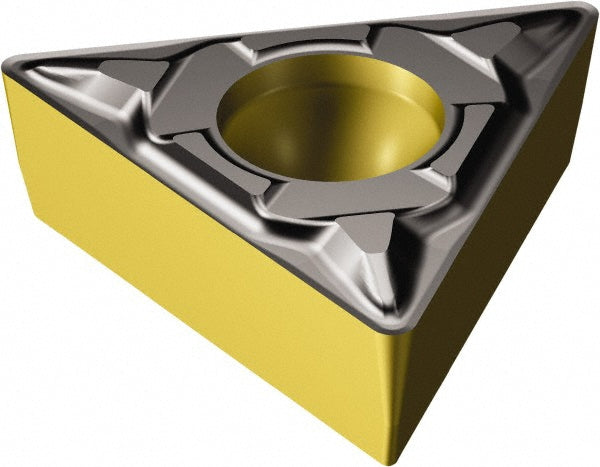

TCMT06T104PF1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5752821
MFR# 5752821ISO/ANSI# TCMT06T104PF1515Series CoroTurn 107
$12.29List $15.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752821 is a TCMT06T104PF1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
ChipbreakerT
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.21
Insert styleTCMT
Iso codeTCMT06T104PF1515
Length0.2606
Manufacturers catalog number5752821
Manufacturer grade1515
Maximum depth of cut0.2449
Relief angle7
