Sandvik Coromant

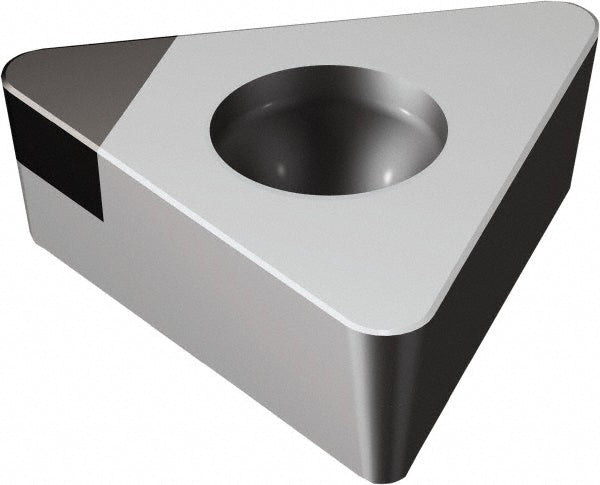

TCMW16T304FRP CD10 Carbide Insert, Grade CD10 - Sandvik Coromant 5752846
MFR# 5752846ISO/ANSI# TCMW16T304FRP CD10Series CoroTurn 107
$160.00List $205.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCD10
MaterialCarbide
Description
The Sandvik Coromant 5752846 is a TCMW16T304FRP CD10 carbide indexable insert, grade CD10. Suited for non-ferrous metal.
Specifications
Chip breakerFP
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.2913
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMW
Insert thickness in5/32
Iso codeTCMW16T304FRP CD10
Length range0.0000 - 0.3000
Manufacturer gradeCD10
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Tolerance codeM
Wiper edgeNo
